Electric Bed

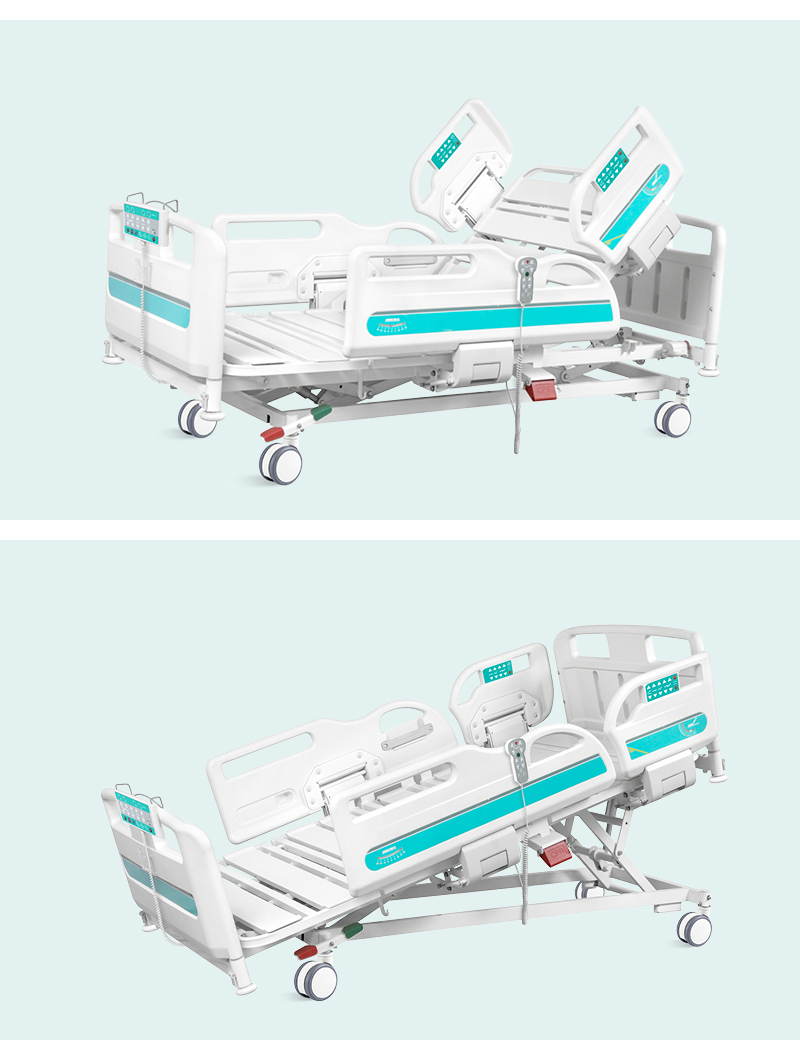

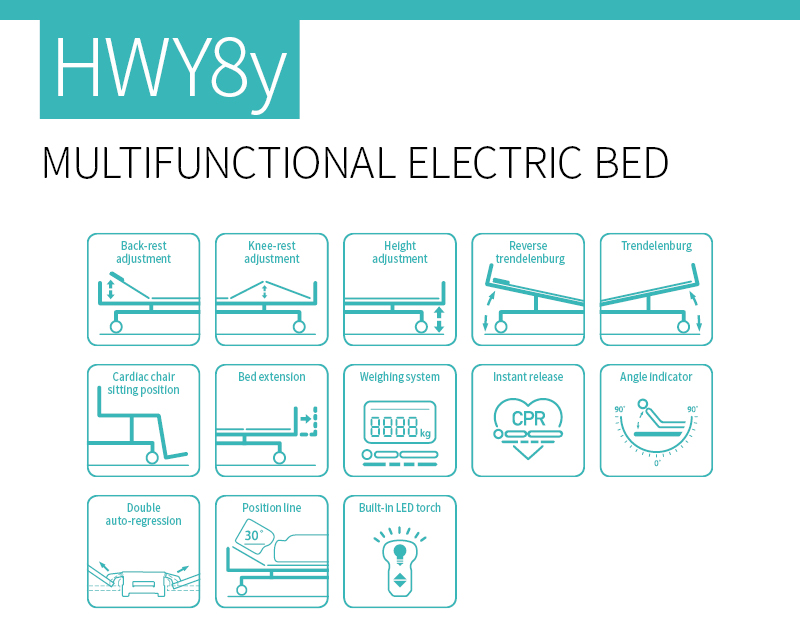

HWY8y Multifunctional Electric Bed

Electric Bed

Technical parameters External size (LxWxH) 2130x1050 mm Mattress pl

Technical parameters

External size (LxW)	2130x1050 mm
Mattress platform	1925x880 mm
Safe working load	250 kg
Height adjustment	360-780 mm

Technical configuration

Linear motor	4pcs
5'' double side castors, central locking system	4pcs
ABS Oasis side rail extra height	1set
ABS Oasis bed ends with safe lock	1set
PP bed platform,removable&washable	9pcs
Plastic socket inside pp guardrail for phone or glasses	2pcs

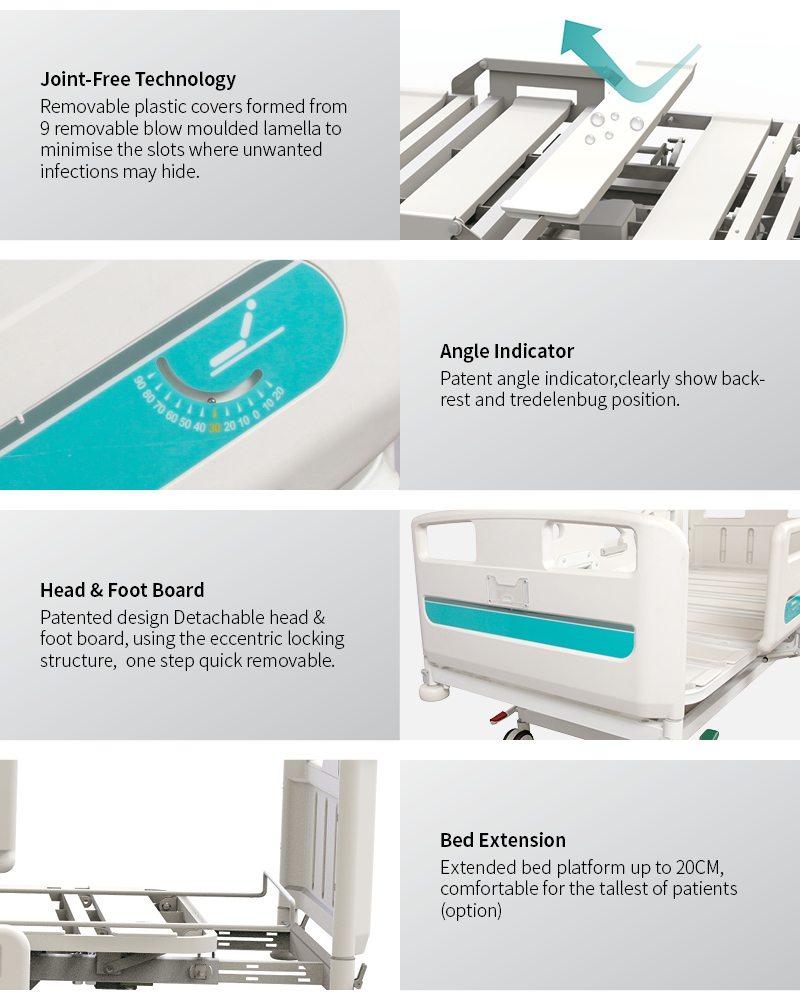

Patent angle indicator for back-rest and trendelenburg position	4pcs

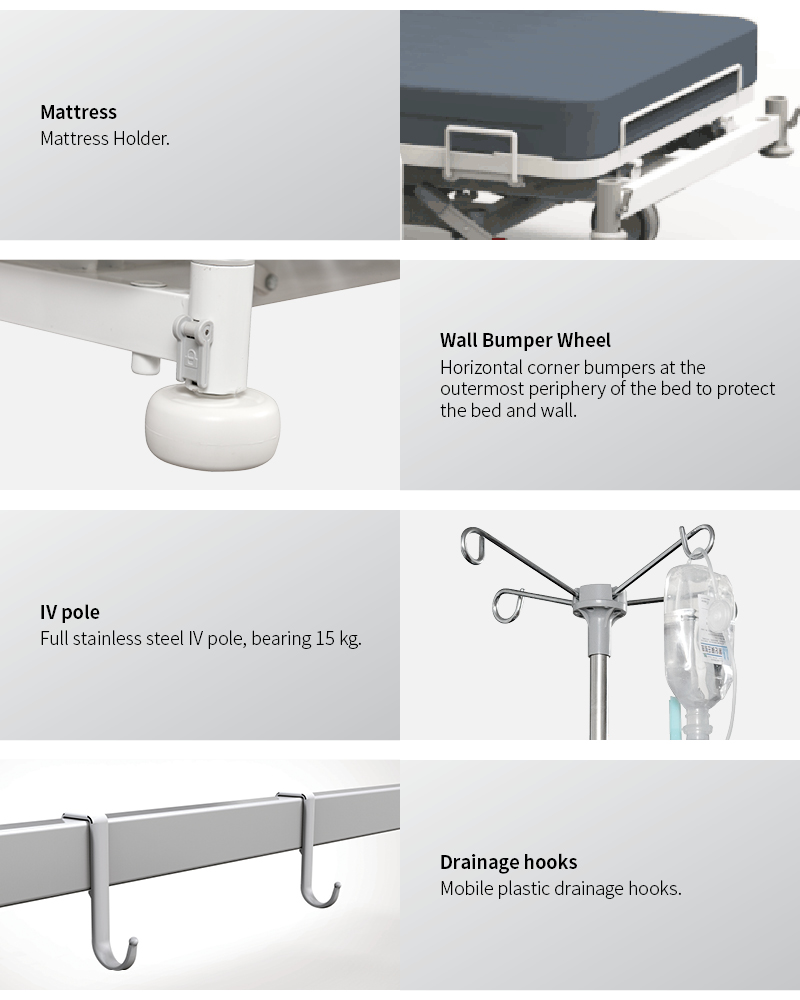

Ø70mm wall bumper wheel	4pcs
IV pole 4 hooks	1set
IV pole prevision	4pcs
Drainage hook	2pcs
Central locking pedal	2pcs
ABS mattress stopper	2pcs
Hand controller	1pc
Manual CPR
Electric CPR

Optional

☐ Weighing system
☐ Bed extension 20cm
☐ Back-up battery
☐ Nurse control panel
☐ Emergency stop button
☐ Cardiac chair position
☐ Directional wheels function
☐ 5th and 6th extra side rail for full protection
☐ Monkey pole
☐ Balkan frame
☐ Linen holder

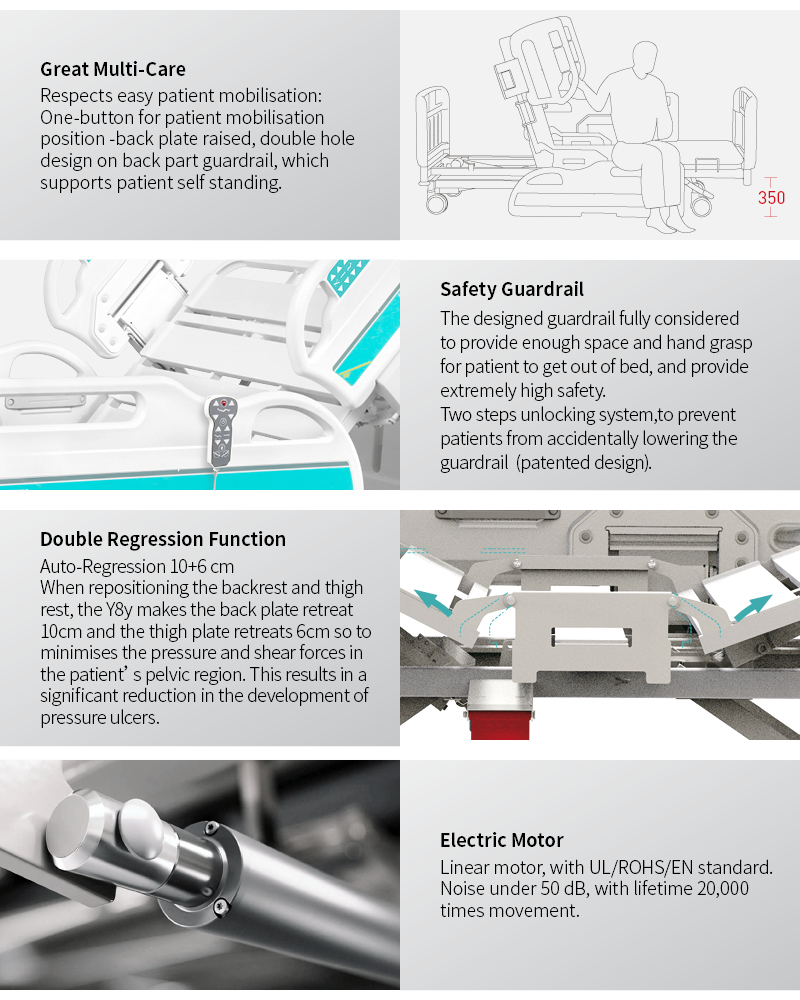

☐ One-button for patient mobilisation position
☐ One button nursing position
☐ Lowest position indicator
