Medical Lamp

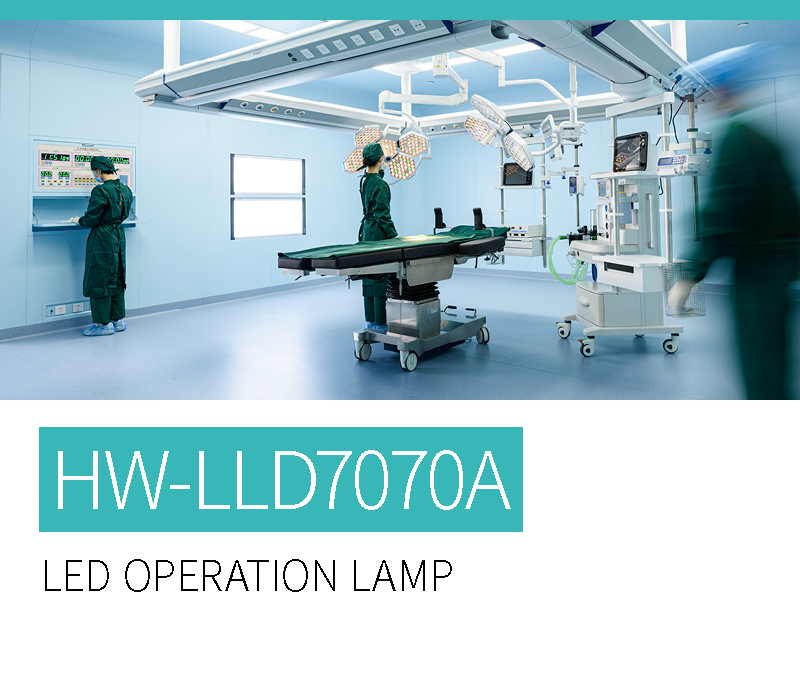

HW-LLD7070A LED Operation Lamp
Medical Lamp
Technical parameters Diameter of lighthead (mm) 700/700 Illumination at 1m (Lux) 180000/
Product Introduction
Technical parameters
| Diameter of lighthead (mm) | 700/700 |
| Illumination at 1m (Lux) | 180000/180000 |
| Brightness control range | 0-100% stepless adjustment |

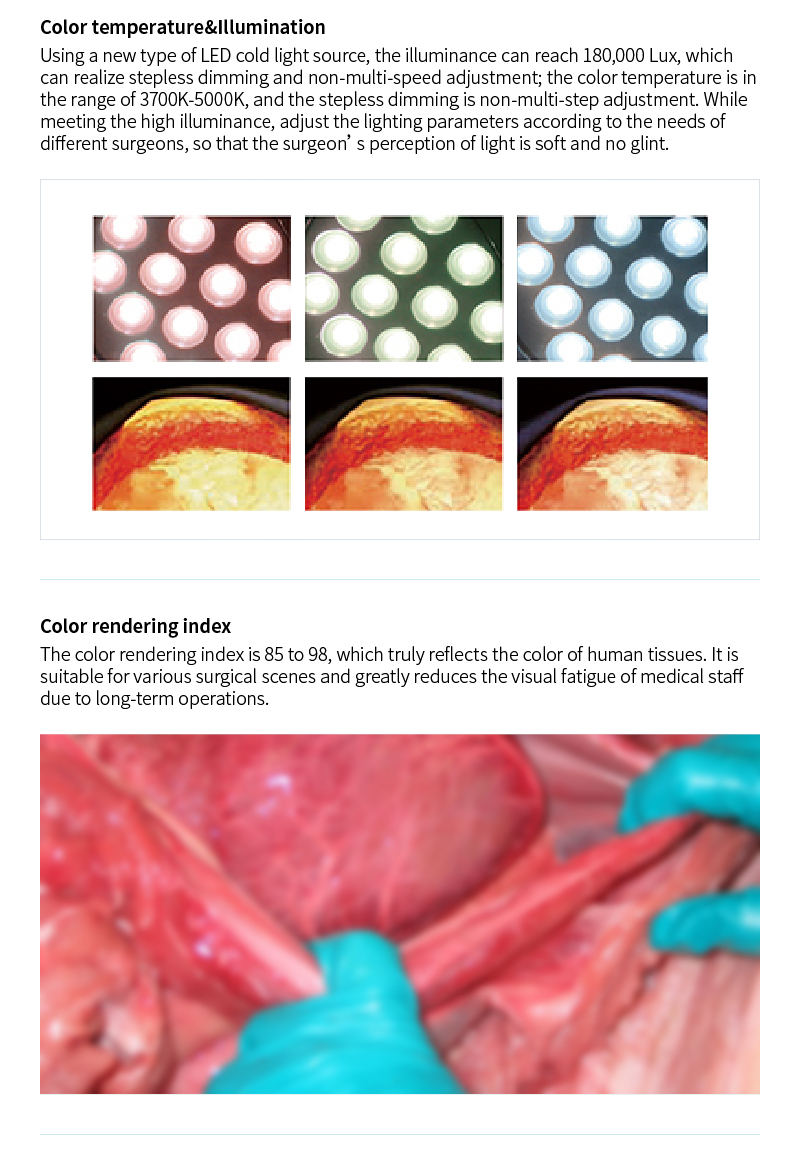

| Color temperature (Kelvin) | 3700-5000 |
| Color rendering index (CRI) | 85-95 |
| Temperature rise (Surgeon head)(℃) | ≤1 |

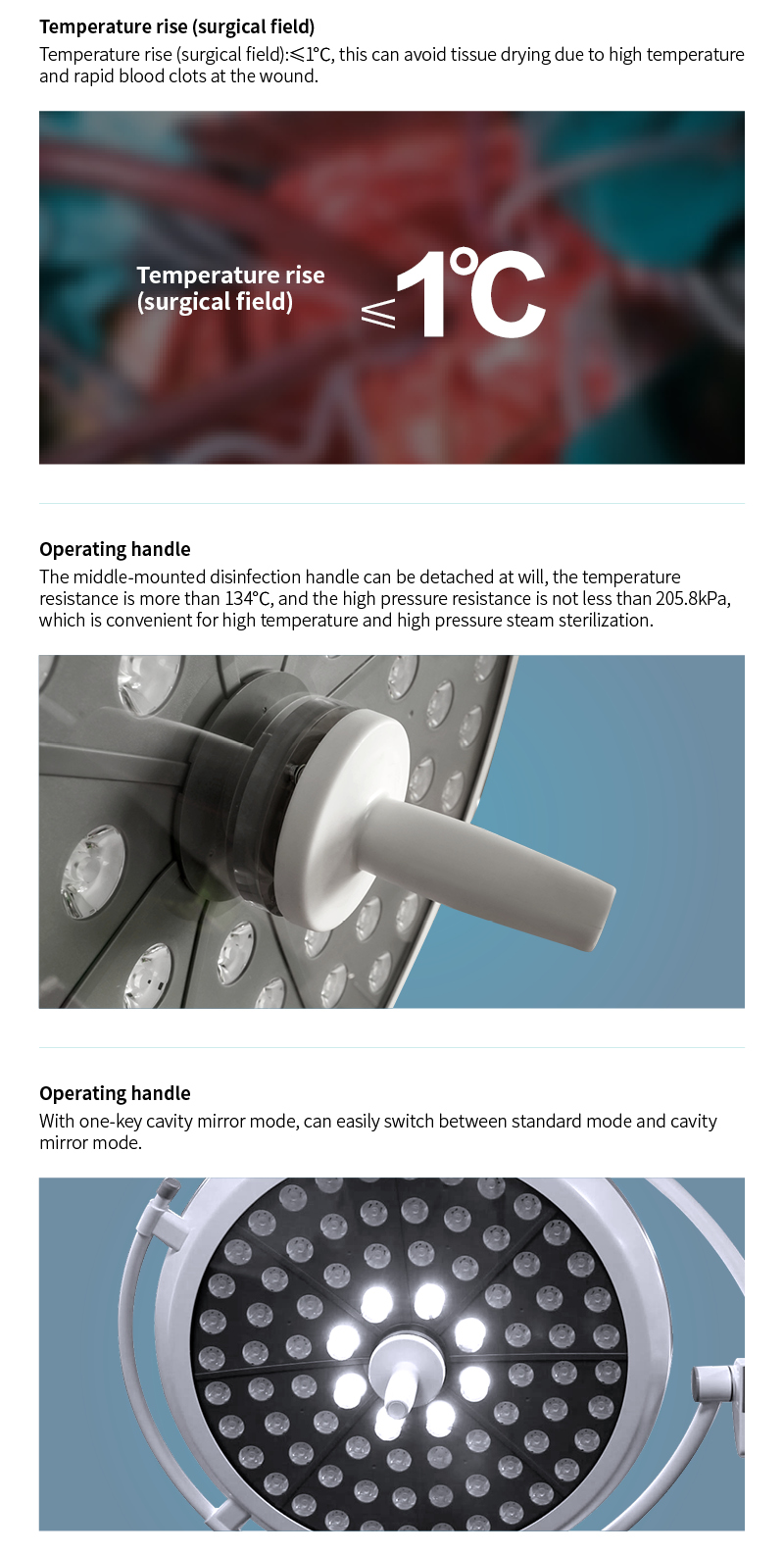

| Temperature rise (Surgical field)(℃) | ≤1 |
| Total irradiance Ee (W/m2) | ≤600+600 |
| Radiant power Ee/Ec (mW/m2lux) | ≤4 |
| Effective focusing depth (cm) | 60-130 |
| Lighting spot size (cm) | 16-28 |
| L1+L2 depth of illumination (cm) | ≥130 |
| Bulb type | LED |

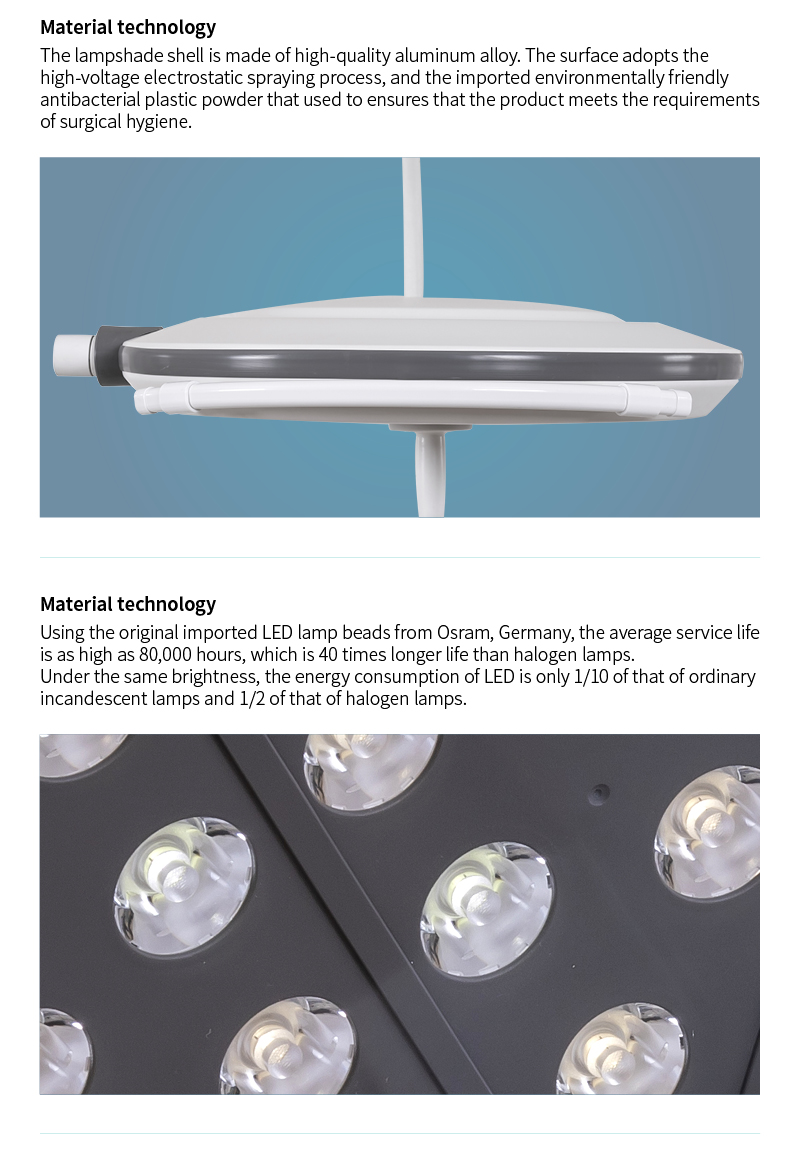

| Bulb brand | OSRAM |
| Bulb quantity | 80+80 |
| Bulb power (w) | 1 |
| Average bulb life (hours) | ≥80000 |
Technical configuration
| Rotating arm parts | 1set |
| Balance arm | 2sets |
| Main light | 1set |
| Auxiliary light | 1set |
| handle | 2pcs |
| fuse | 4pcs |
