Medical Lamp
HW-LLY03E LED Operation Lamp
Medical Lamp
Technical parameters Diameter of lighthead (mm) 700 Illumination at 1m (Lux) 120000
Product Introduction
Technical parameters
| Diameter of lighthead (mm) | 700 |
| Illumination at 1m (Lux) | 120000 |
| Brightness control range | 10-100% stepless adjustment |

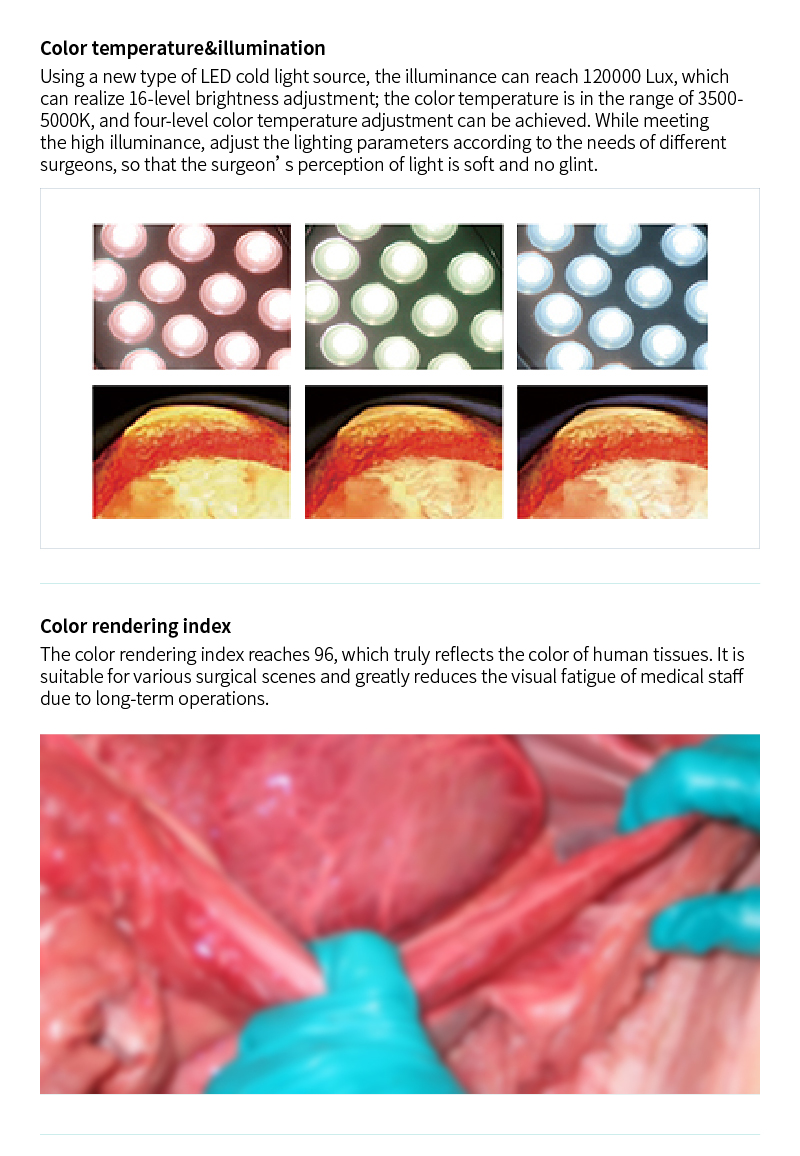

| Color temperature (Kelvin) | 3500-5000 |
| Color rendering index (CRI) | ≥96 |
| Temperature rise (Surgeon head)(℃) | ≤2 |

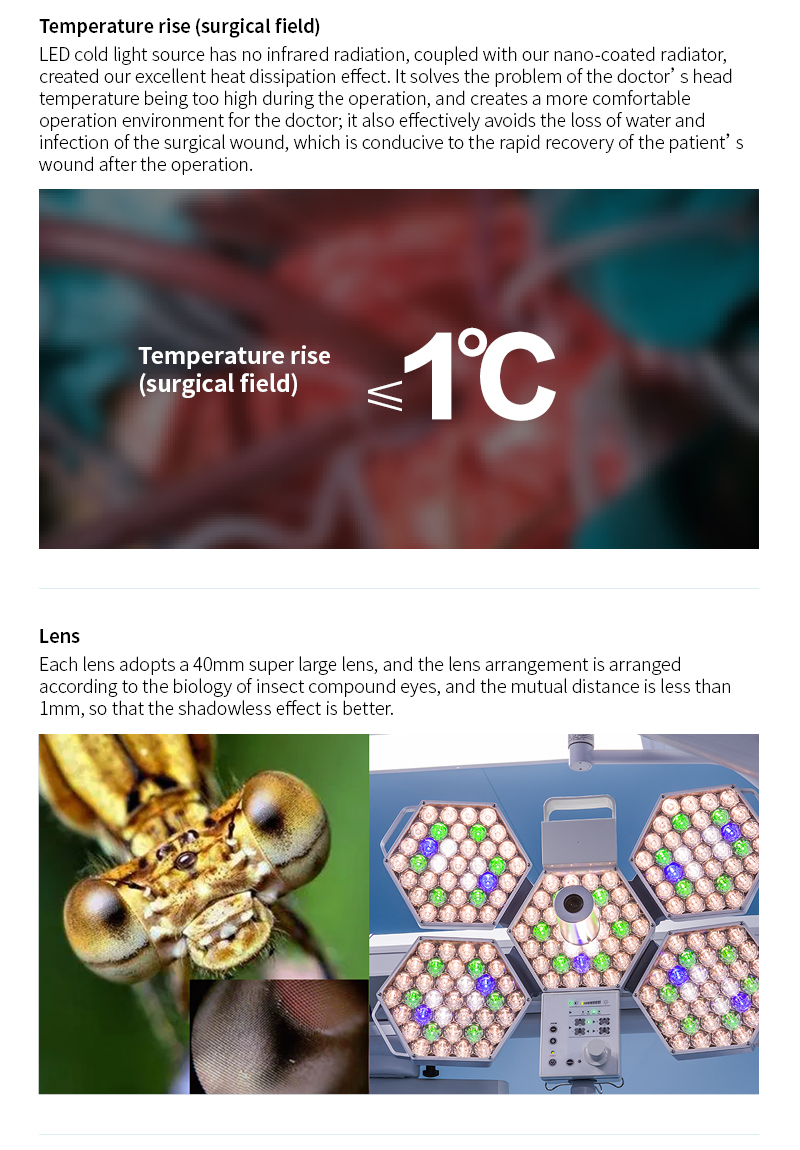

| Temperature rise (Surgical field)(℃) | ≤1 |
| Total irradiance Ee (W/m2) | ≤127 |
| Radiant power Ee/Ec (mW/m2lux) | ≤4 |
| Effective focusing depth (cm) | 100 |
| Lighting spot size (cm) | 22-31 |
| L1+L2 depth of illumination (cm) | 100 |
| Bulb type | LED |
| Bulb brand | OSRAM |
| Bulb quantity | 111 |
| Bulb power (w) | 1 |
| Average bulb life (hours) | ≥50000 |
| Battery lighting last(optional) | 2 hours |
Technical configuration
| Balance arm | 1set |
| C-arm | 1set |

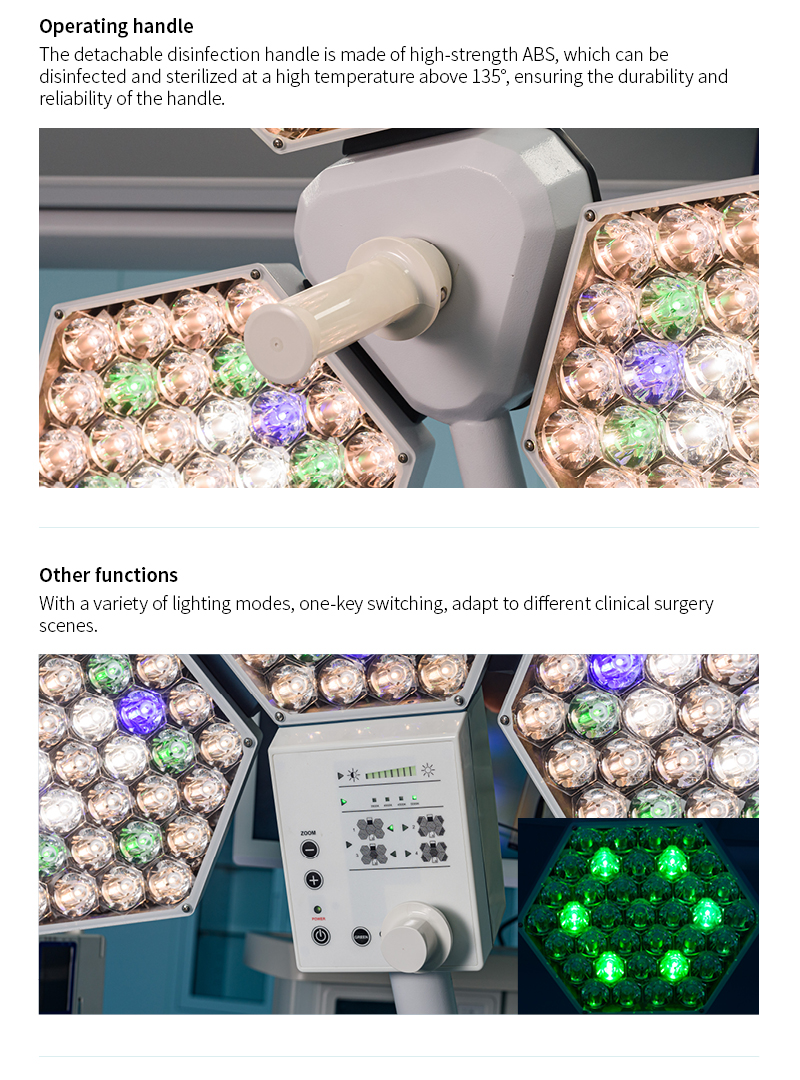

| Handle | 1pc |
| Battery(optional) | 1set |
