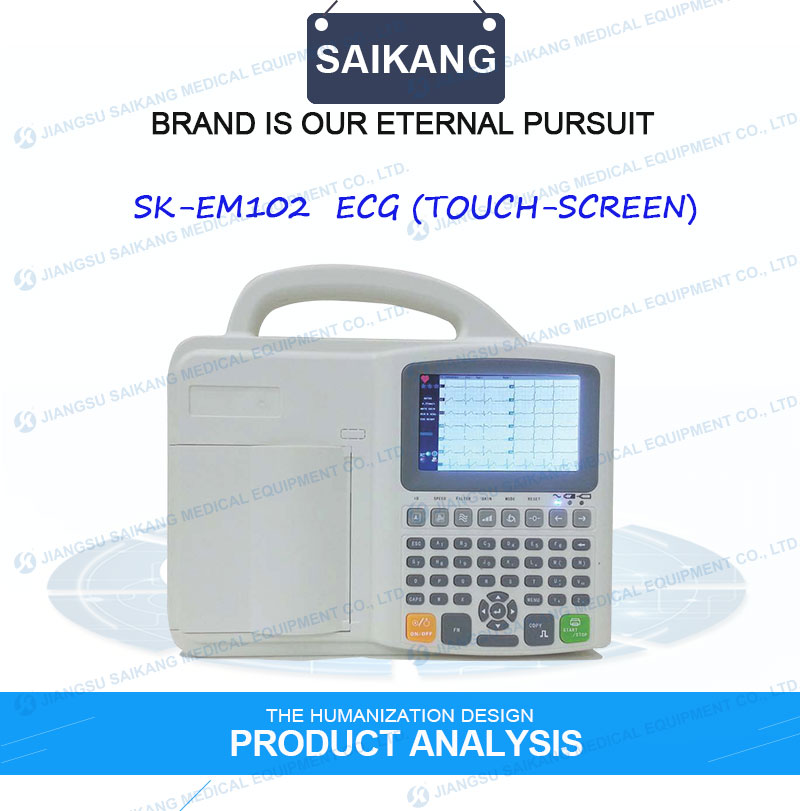

HW -EM102 ECG With Touch Screen

Introduction:

 High-end ECG, touch screen type, used for detecting and displaying the electrocardiogram, can be used in ICU room, private room, normal wards.

This ECG is with CE approval

Descriptions:

* 3 channel ECG machine with interpretation

*  5.0” color TFT LCD display

*  Simultaneous 12 leads acquisition and 1, 1+1, 3 channel (Manual/Auto) recording with high resolution thermal printer

*  Manual/Auto working modes

*  Use digital isolation technology and digital signal processing

*  Baseline stabilization inspection

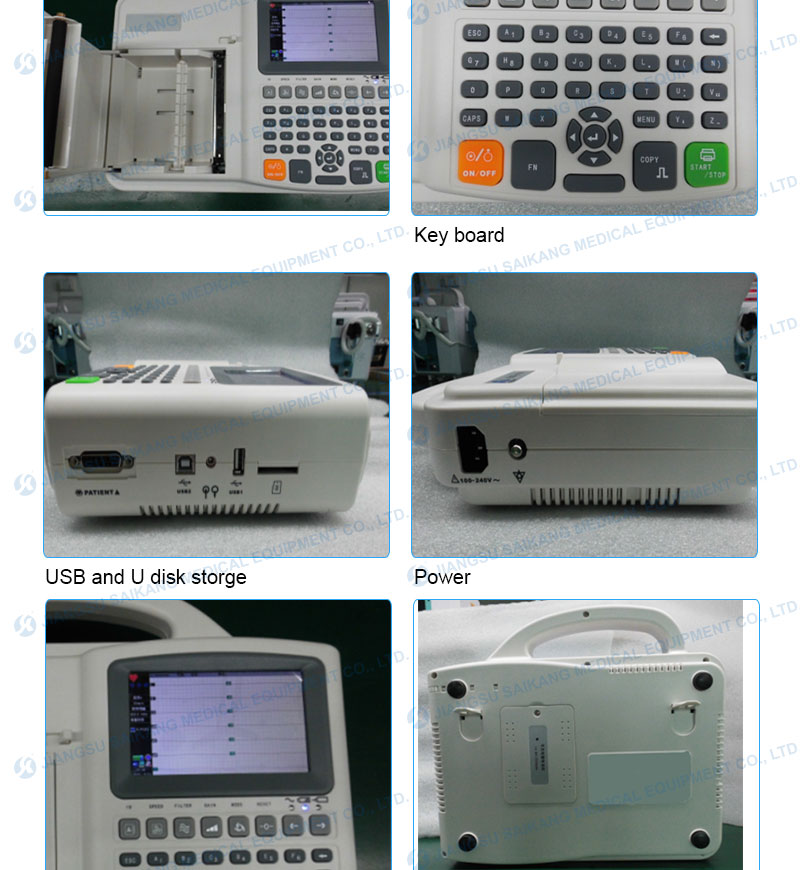

*  Full alphanumeric silicon keyboard

*  Support U disk storage

*  Support USB function (Optional)

*  Technical Specifications

*  Lead: Standard 12 leads

*  Acquisition: Simultaneous 12leads

*  A/D Converter: 14bit

*  Sampling Rate: 1000Hz

*  Working Mode: Manual/Auto

*  Interference Filter: AC Filter and EMG Filter

*  CMMR: ≥100dB (with AC filter)

*  Input Circuit: Floating, protection circuit against defibrillator effect

*  Input Circuit Current: ≤0.1μA

*  Input Impedance: ≥50MΩ

*  Patient Current Leakage: <10μA

*  Calibrating Voltage: 1mV±2%

* Skin Voltage Tolerance: ≥±500mV

*  Time Constant: ≥3.2s

* Frequency Response: 0.05 Hz~250Hz

*  Noise Level: <15μVp-p

*  Sensitivity Threshold: ≤20μV

*  Signal Channel Interference: ≤0.5mm

*  Printer: Thermal printer

*  Paper: 80mmx20m, roll

*  Page Speed: 6.25, 12.5, 25, 50mm/s (±3%)

* Sensitivity Printer: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV

*  CPU: 32 bits

*  Safe Class: GB9706.1, Class I, Type CF

* Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA

AC 85~265V, 50/60Hz

DC14.8V (2200mAh), rechargeable Li-ion battery

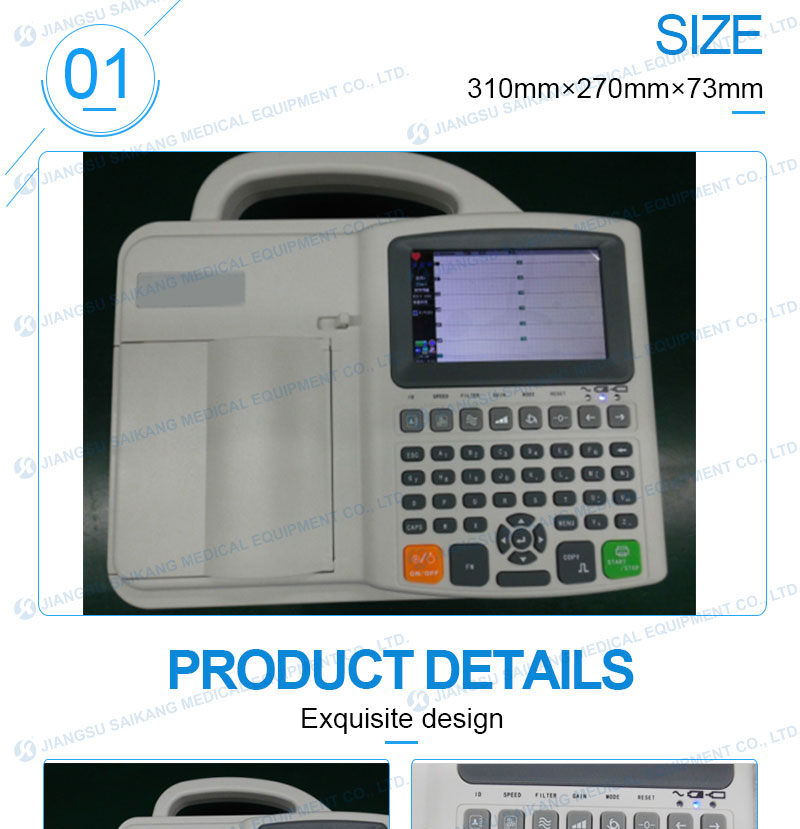

*  Dimension: 310mm×270mm×73mm

Weight:1.45Kg (with Battery)
