HW-EM103 Wholesale Cheap ECG Machine China

Introduction:

ECG, 12-channel type, used for detecting and displaying the electrocardiogram, can be used in ICU room, private room, normal wards.

This ECG is with CE approval

Descriptions:

* 12 channel ECG machine with interpretation

* 7" color TFT LCD display

* Simultaneous 12 leads acquisition and (Manual/Auto)  recording with high resolution thermal printer

* Manual/Auto working modes

* Use digital isolation technology and digital signal processing

* Baseline stabilization inspection

* Full alphanumeric silicon keyboard

* Support U disk storage

* Support USB function (Optional)

* Technical Specifications

* Lead: Standard 12 leads

* Acquisition: Simultaneous 12 leads

A/D Converter: 14bit

* Sampling Rate: 1000Hz

* Working Mode: Manual/Auto

* Interference Filter: AC Filter and EMG Filter

* CMMR: ≥100dB (with AC filter)

* Input Circuit: Floating, protection circuit against defibrillator effect

* Input Circuit Current: ≤0.1μA

* Input Impedance: ≥50MΩ

* Patient Current Leakage: <10μA

* Calibrating Voltage: 1mV±2%

* Skin Voltage Tolerance: ≥±500mV

* Time Constant: ≥3.2s

* Frequency Response: 0.05 Hz~250Hz

* Noise Level: <15μVp-p

* Sensitivity Threshold: ≤20μV

* Signal Channel Interference: ≤0.5mm

* Printer: Thermal printer

* Paper: 215mmx20m, roll

* Page Speed: 6.25, 12.5, 25, 50mm/s (±3%)

* Sensitivity Printer: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV

* CPU: 32 bits

* Safe Class: GB9706.1, Class I, Type CF

* Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA

AC 85~265V, 50/60Hz

DC14.8V (2200mAh), rechargeable Li-ion battery

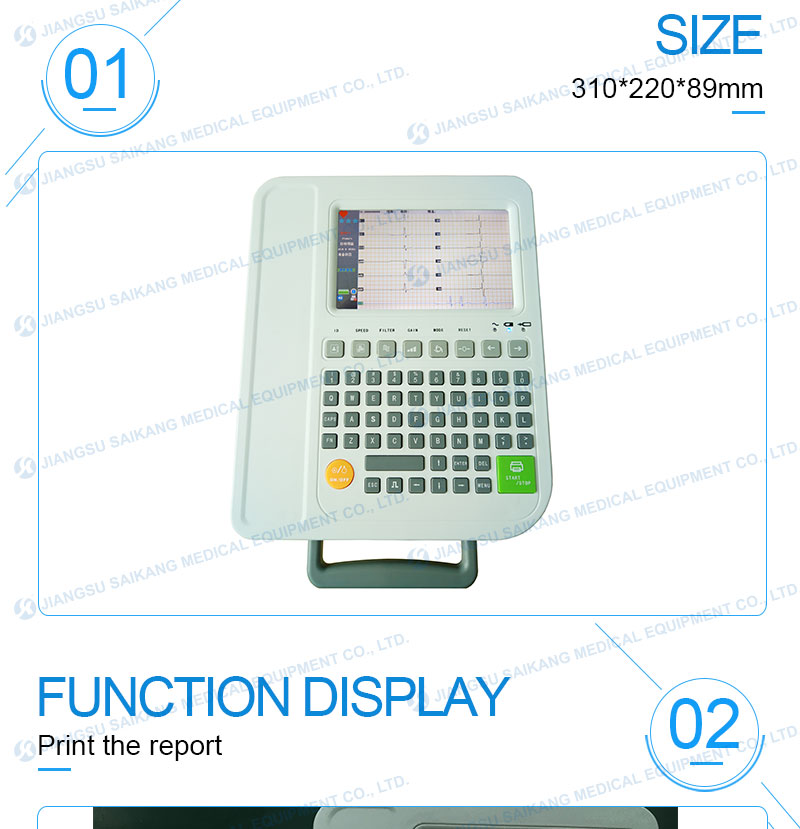

* Dimension: 310mm×220mm×89mm

* Weight: 2kg (with battery)
