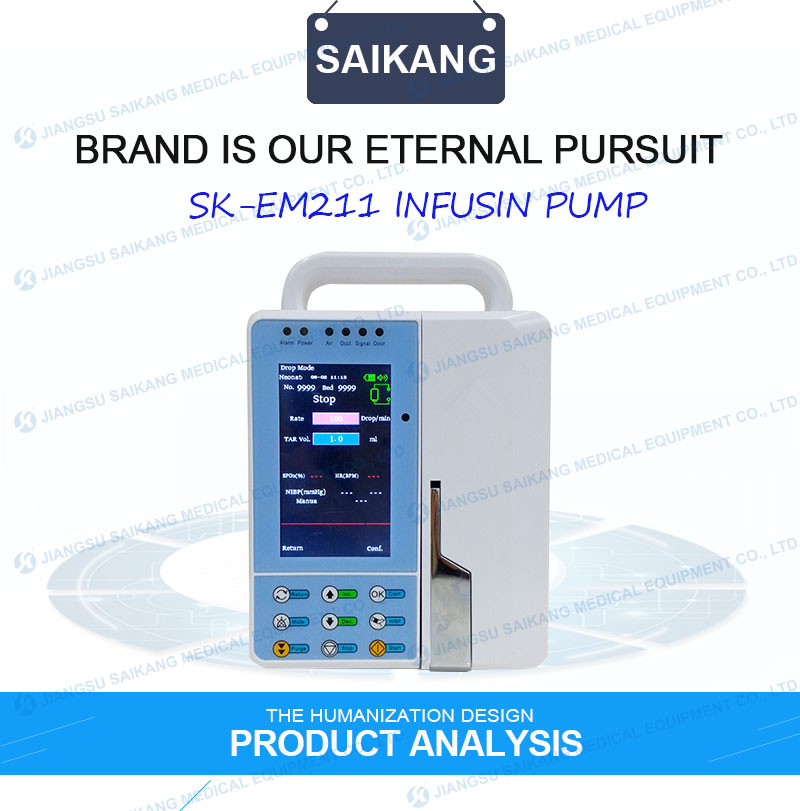

HW-EM211 Medical Appliances Cheap Infusion Pump

Introduction:

High-end infusion pump, used for heating infusions, medicines, can be used in ICU room, private room, normal wards.

This bed is with CE approval



Descriptions:

l  Infusion rate range

l  Adjustable drop rate range: 1 /min~400 drops/min

l                            (step: 1 drop /min)

l  Adjustable flow rate range: 1ml/h~1200ml/h

l                           (step 0.1ml/h)

l  Purge rate: 800ml/h

l  KVO rate: 1ml/h (1~300ml/h)

l           3ml/h (greater than 300ml/h)

l  Infusion volume range: 1ml~9999.9ml (step: 0.1 ml)

l  Maximum accumulated volume: 9999.9ml (step: 0.1 ml)

l  Infusion Time range: 1min~9999min (step: 1 min)



l  Infusion accuracy: Within ±3% (using calibrated high quality IV set)

l                     Mechanical precision: within ±2%



l  Occlusion alarm threshold:

l           High: 800 mmHg ± 200 mmHg (106.7kPa±26.7kPa)

l  Medium: 500 mmHg ± 100 mmHg (66.7kPa±13.3kPa)

l  Low: 300 mmHg ± 100 mmHg (40.7kPa±13.3kPa)

l  Alarm: Infusion Complete, Empty, Faulty Signal, Misoperation, Occlusion, Door Open, Air Bubble, Low Battery, Setting Error, AC power off, Idle.



l  NIBP

l  Range

l  Average deviation: ≤ ±5mmHg

l  Standard deviation:  ≤ 8mmHg

l  Adult

l           SYS: 40mmHg~280mmHg

l           MEAN: 20mmHg~240mmHg

l           DIA: 10mmHg~220mmHg

l  Pediatric

l           SYS: 40mmHg~220mmHg

l           MEAN: 20mmHg~170mmHg

l           DIA: 10mmHg~160mmHg

l  Neonate

l           SYS: 40mmHg~135mmHg

l           MEAN: 20mmHg~110mmHg

l           DIA: 10mmHg~100mmHg

l  Static pressure

l           Range: 0mmHg~300mmHg

l           Deviation: 3mmHg

l  Resolution: 1mmHg

l  NIBP measurement mode

l  Manual

l  Cycle (automatic):

l  Optional interval: 1min, 2min, 3min,4min, 5min, 10min,

l  15min, 30min, 60min, 90min

l  Fast: continuous NIBP measurement, interval is 5min

l  NIBP alarm

l  High pressure alarm: >90mmHg-160mmHg

l  Low pressure alarm: <50mmHg-90mmHg

l  Accuracy: ±5%

l  Overpressure protection

l  Adult: 280 mmHg ±10 mmHg

l  Pediatric: 237 mmHg ±3 mmHg

l  Neonate: 147 mmHg ±3 mmHg

l  SpO2

l  Range: 0%~100%

l  Resolution: 1%

l  Accuracy: 70% to 100%, precision is 2%

l            0% to 69%, undefined

l  SpO2 alarm

l  Upper limit: 100%

l  Lower limit: 90%

l  Alarm value accuracy: 3%

l  Alarm time accuracy: 2s

l  Pulse rate

l  Range: 20bpm~300bpm

l  Resolution: 1bpm

l  Accuracy: 3bpm

l  Pulse rate alarm

l  Upper limit: 120bpm

l  Lower limit: 50bpm (default)

l  Alarm value accuracy: 5%

l  Alarm time accuracy: 2s

l  NIBP Cuff requirement

l  Human body contact materials: Waterproof cloth

l  Size: 515mm(L)×145mm(W), allowed deviation: ±5%

l  SpO2 sensor

l  Type: Finger clip type

l  Wire length: 3000mm, allowed deviation: ±5%

l  Human body contact materials: Silicone

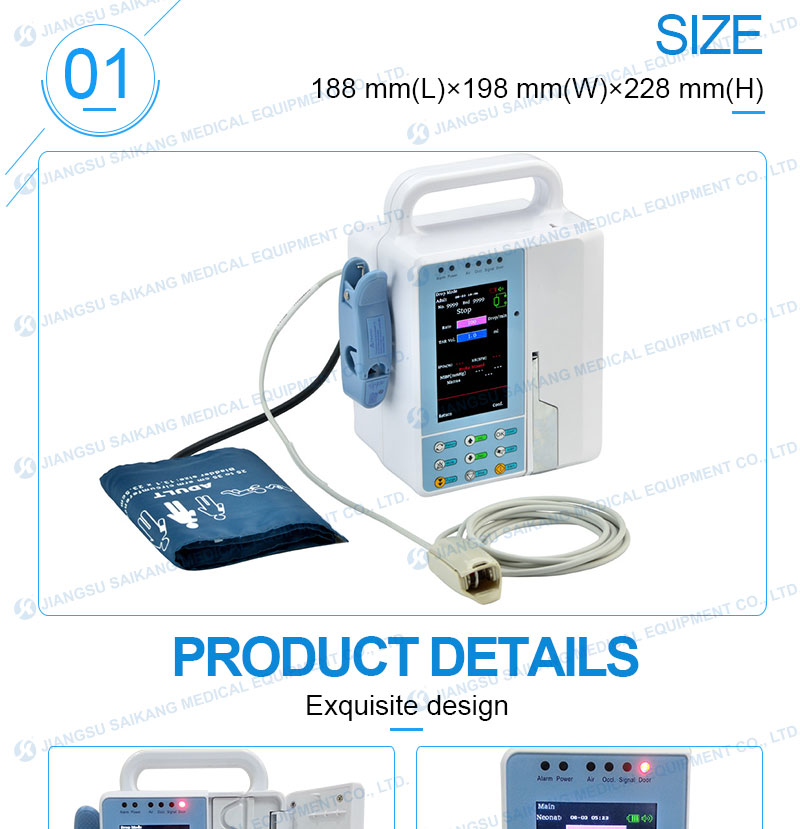

l  Size: 188 mm(L)×198 mm(W)×228 mm(H)

l  Net weight: 2.5kg



Standard Function:

* 4.3” color TFT LCD screen (LED backlight), with resolution 272×480

* Three working modes: Rate/Time/Volume mode

* Drug library with 210 kinds of medicine

* Storage 1500 history records

* Heating function, suitable for infusing in winter or there is requirement for the fluid medication temperature

* Support multi language display

* A variety of visible and audible alarm, make infusion more safe

* Standard:Drug library, History record, Heating function, Drip detector



Model	SK-EM211
Size	188*198*228mm
Net weight	2.5Kg
